Innova • Turntable Wrappers / Semi-Auto Pallet Wrappers
Semi-Auto Pallet Wrappers for Flexible, Cost-Effective Turntable Stretch Wrapping

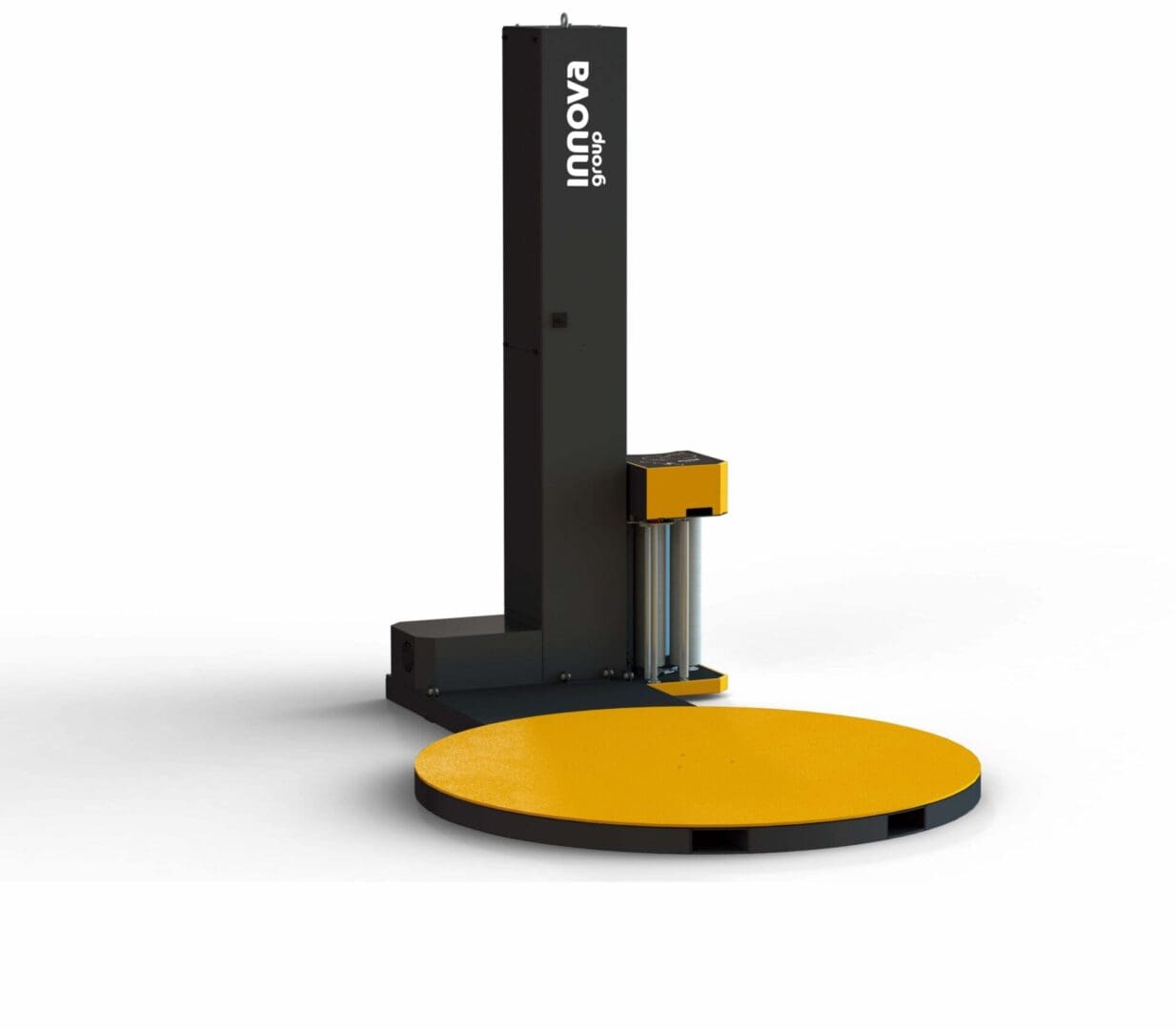

Innova’s Cyclone turntable wrapper is built for plants that want a dependable semi-automatic stretch wrapping solution with strong film control, operator-friendly setup, and the flexibility to handle a wide range of pallet sizes without the complexity of a fully automatic line.
Best for: lower- to mid-volume pallet wrapping, mixed product runs, plants without compressed air at the wrapper location, and operations that want professional pallet wrapping without full automation.
Why Choose a Semi-Auto Turntable Wrapper?

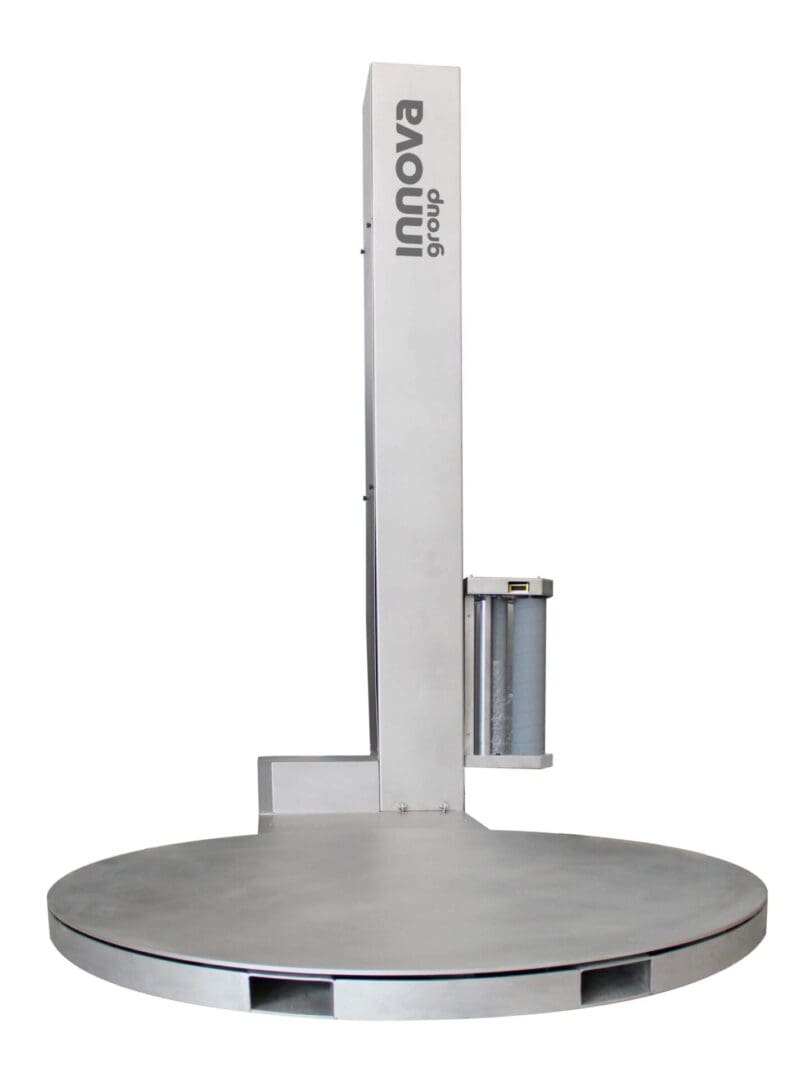

Innova positions the Cyclone as a versatile semi-automatic pallet wrapper with a pre-stretch system and roping device, designed to save consumables, adapt to your space, and handle pallet heights up to 2,600 mm. It is fully electric, does not require floor anchoring, and does not need compressed air installation. :contentReference[oaicite:1]{index=1}
Lower Film Consumption
The Cyclone includes a pre-stretch system, and Innova lists pre-stretch capability up to 400%, helping reduce film usage while maintaining stable load containment. :contentReference[oaicite:2]{index=2}
- Better control over stretch film costs
- Cleaner, more consistent wrapping than hand wrapping
- Optional reinforcement roping for extra hold

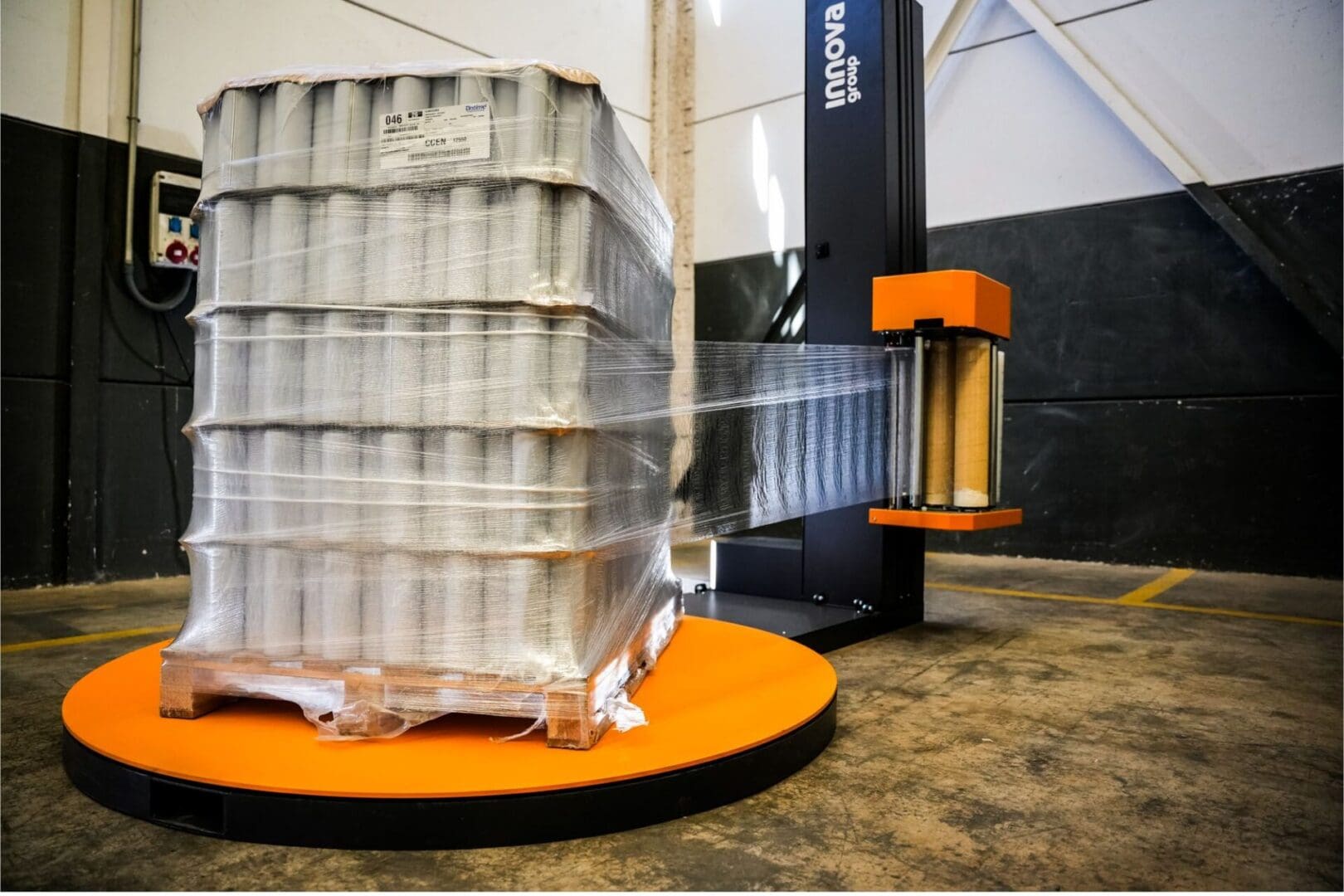

Adapts to Your Factory and Load
Innova says the machine adapts to different pallet sizes and heights, offers turntable sizes of 1,650 mm and 2,200 mm, and is easy to transport without permanent floor anchoring. :contentReference[oaicite:3]{index=3}
- Good fit for changing pallet formats
- Works well in flexible packaging areas
- Low-profile ramp option for pallet truck access

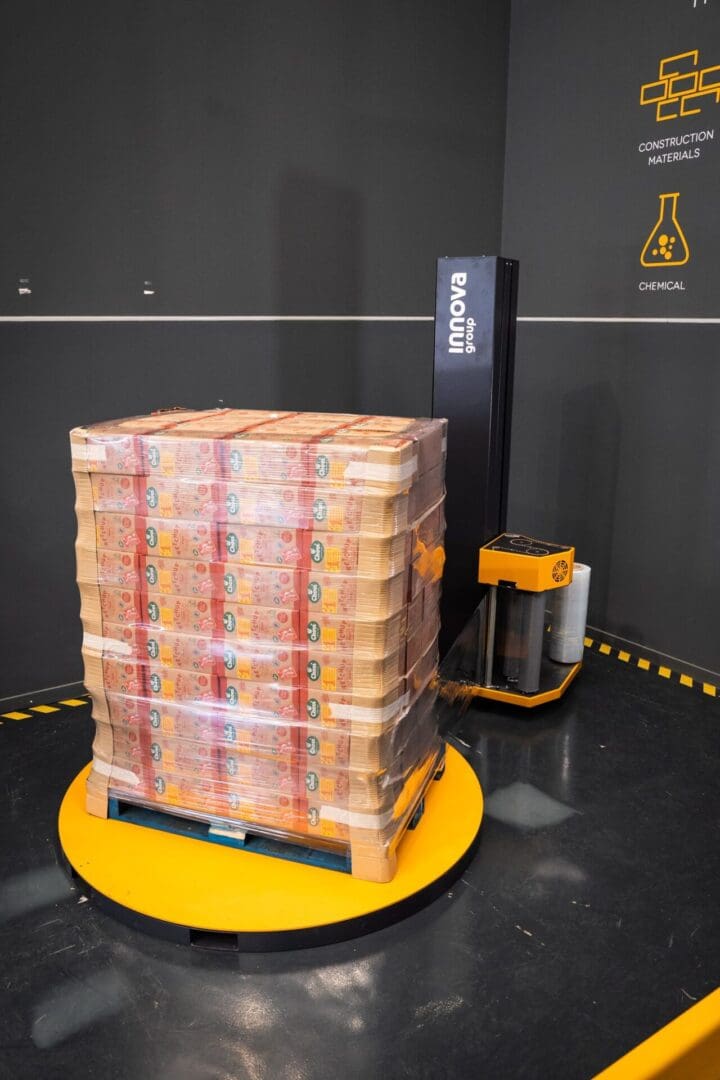

Simple Setup and Operator Use
Innova highlights a full-color display, intuitive controls, multilingual interface, and up to 99 programmable pallet codes for repeatable wrapping recipes. :contentReference[oaicite:4]{index=4}
- Easy to train operators on
- Repeatable cycle setup for different products
- Strong fit for plants needing flexible operation
How a Turntable Wrapper Works
In a semi-automatic turntable wrapper, the pallet is placed on the rotating table and the machine applies film as the turntable spins. The selected wrap recipe controls film application, wrap height, and other settings to produce a more consistent final load.
Where Semi-Auto Turntable Wrappers Perform Best
Innova shows Cyclone use across chemicals, cement, ceramic tiles, agri-food, household appliances, food and beverages, paper, and logistics applications, reflecting its flexibility for many palletized products. :contentReference[oaicite:5]{index=5}
Flexible Production and Mixed Product Runs
Semi-auto turntable wrappers are a strong fit when pallet sizes, product types, or production schedules change often and a fully automatic system is not necessary.
- Good for mixed SKUs and varying pallet heights
- Ideal for plants scaling toward greater automation
- Useful where operators need quick recipe changes
Facilities Without Full Automation Infrastructure
Because the Cyclone is fully electric and does not require compressed air or floor anchoring, it can be a practical choice where utility and installation simplicity matter. :contentReference[oaicite:6]{index=6}
- Simpler installation in many plants
- Useful for standalone wrapping stations
- Good fit for flexible packaging areas
Options, Accessories, and Technical Highlights
Innova lists accessories including remote access connection, reinforcement roping device, weighing system, low-profile access ramps, floor formwork system, stainless steel finish, and corporate color customization. The technical datasheet lists production capacity from 20–40 cycles/hour, maximum load height of 2,600 mm, maximum load weight of 3,000 kg, and turntables of 1,650 mm or 2,200 mm diameter. :contentReference[oaicite:7]{index=7}
Reinforcement and Load Control
Optional reinforcement roping and film control features help improve containment for pallets that need extra holding force.
- Extra hold for unstable loads
- Better transport performance
- Improved wrap consistency
Access and Ergonomics
Low-profile ramps and flexible installation features help make the wrapper easier to use with pallet trucks and adaptable to your available space. :contentReference[oaicite:8]{index=8}
- Useful for manual pallet truck access
- No floor anchoring required
- Practical for standalone wrapping cells
Special Environment Options
Innova offers a stainless-steel finish for refrigerated goods, food, pharma, or corrosive product environments where washdown resistance or corrosion resistance is important. :contentReference[oaicite:9]{index=9}
- Good for food, pharma, and chemical environments
- Maintains standard Cyclone features
- Available for more demanding conditions
Semi-Auto Wrapper FAQs
How fast can the Cyclone run?
Innova lists a production capacity of 20 to 40 cycles per hour, depending on the load and configuration. :contentReference[oaicite:10]{index=10}
Does the wrapper need compressed air or floor anchoring?
No. Innova states that the machine is fully electric, does not require compressed air installation, and does not require floor anchoring. :contentReference[oaicite:11]{index=11}
How tall and heavy a pallet can it handle?
The Cyclone datasheet lists maximum load height of 2,600 mm and maximum load weight of 3,000 kg, with adaptability available for other requirements. :contentReference[oaicite:12]{index=12}
What do you need to recommend the right semi-auto wrapper?
Pallet dimensions, load height, load weight, product type, desired cycles per hour, operator workflow, and whether you need options like roping, weighing, ramps, or stainless finish are the best place to start.
