Industrial Mixing Solutions

Reynolds Mixers & Process Vessels

Engineered mixing solutions for powders, slurries, and high-viscosity products—designed and built in Fort Mill, SC. From ribbon & paddle blenders and dual-shaft systems to sigma kneaders and ASME-stamped vessels, we tailor each build to your process.

Reynolds mixers ready to ship

Ribbon & Paddle Blenders

Fast, uniform dry blending with sanitary builds

  • Shallow-helix ribbon promotes left-to-right turnover with reduced centrifuging
  • Working capacities ~1–515 ft³ standard; larger custom builds available
  • Options: liquid addition spray bars, vacuum, heating/cooling jackets (ASME), load cells, VFD/soft-start, XP
  • Sealed bearings, slide-gate discharge (pneumatic optional), CIP-friendly layouts

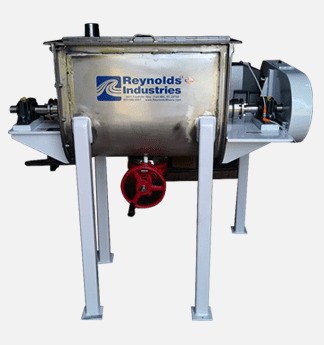

Reynolds Ribbon & Paddle Blender

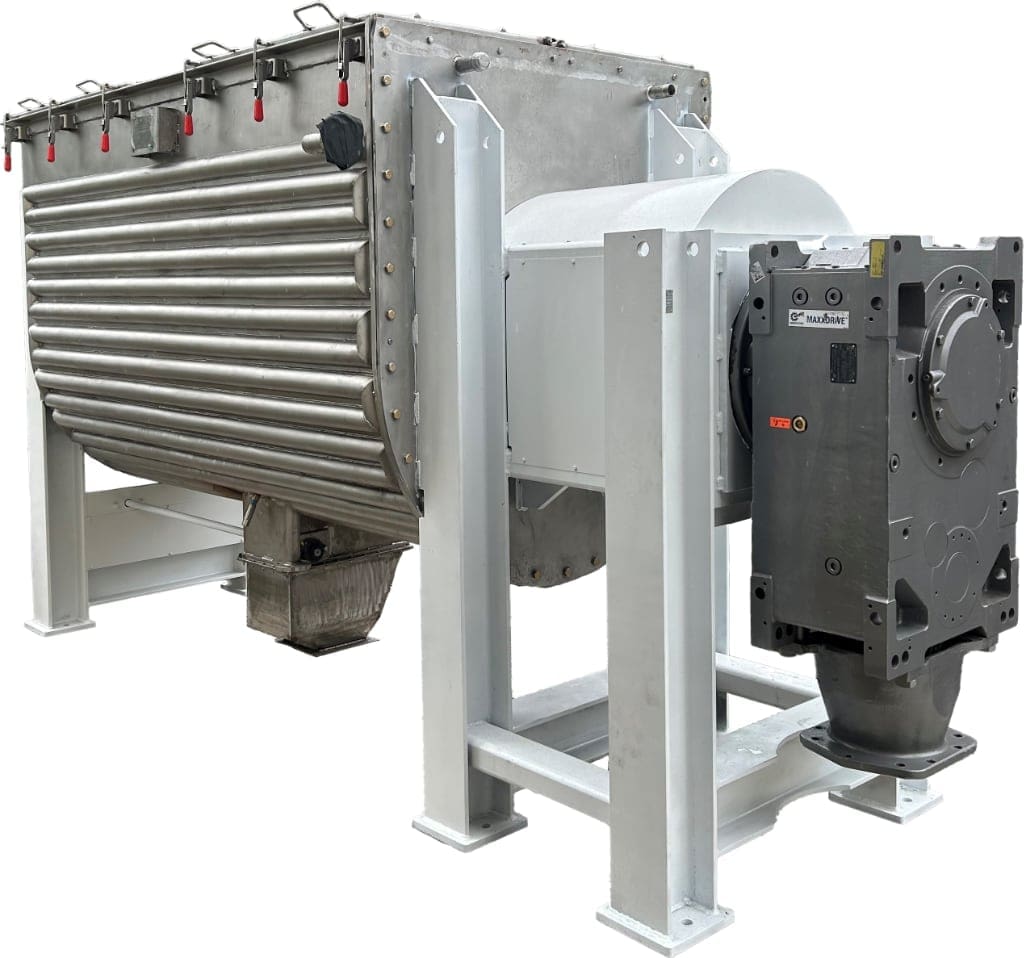

Ribbon blender—production view

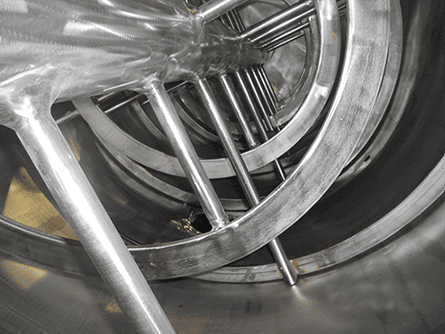

Ribbon agitator detail

Dual Shaft Mixers

High-viscosity mixing with sweep + disperser

  • Low-speed helical sweep (with scrapers) plus saw-tooth high-speed disperser
  • Vacuum/pressure vessels; heating/cooling jackets for efficient heat transfer
  • Hydraulic/pneumatic lift; temp probes, spray nozzles, vacuum fittings, light/sight glass
  • XP builds; pairs with Press-Out Stations for non-flowing product discharge

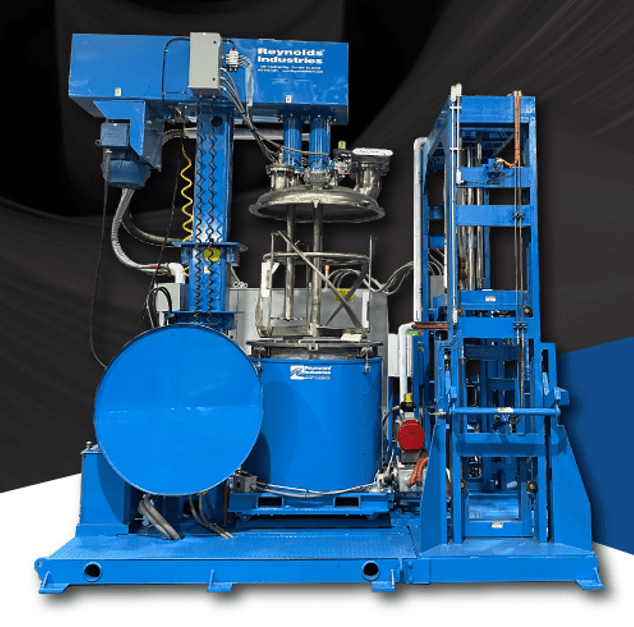

Reynolds Dual Shaft Mixer
Dual shaft mixer vessel

Low Speed Agitators

Anchor/helical designs with rotating baffle

  • Rotating baffle reduces vortexing and improves heat-transfer coefficients
  • Vacuum to ~150 psi designs; single/double mechanical seals; CIP options
  • XP builds; shaft-speed measurement; hydraulic drives for higher viscosity
  • Ideal for resins, slurries, thixotropic products, extraction and wastewater
Reynolds Low Speed Agitator
Low speed agitator vessel

High Speed Dispersers

Rapid wet-out and de-agglomeration

  • Lab to ~300 HP; vessels up to ~3,000 gal
  • Lift and traverse options; XP and vacuum/pressure lids available
  • Effective for ~water-like to ~50,000 cP; higher viscosities move to dual/triple-action systems
  • Ideal for coatings, inks, dyes, cosmetics, conductive pastes
Reynolds High Speed Disperser
Disperser blade detail

Coaxial Mixers

High shear + macro-mixing in one head

  • Center-mounted high-speed disperser inside a low-speed sweep
  • Typical designs to ~250 HP and ~1,000 gal; XP options
  • Excellent for inks/pigments needing both turnover and shear
Reynolds Coaxial Mixer

Sigma Blade Mixers

Universal kneaders for very high viscosity

  • Vacuum/pressure builds; jacketed trough; cored blades for heat transfer
  • Tilt or bottom-discharge; optional mono-screw extruder discharge
  • Common for hot melts, mastics, silicone rubber, adhesives, carbon pastes
Reynolds Sigma Blade Mixer

Press Out Stations

Clean discharge for non-flowing, high-viscosity products

  • Platen Ø ~24–60 in; force ~2–200 tons; under-load speed up to ~2 in/min
  • Rapid-advance; programmable multi-stops; fixed or variable-height platforms
  • Explosion-proof controls and multiple seal materials available
Reynolds Press Out Station
Press Out controls

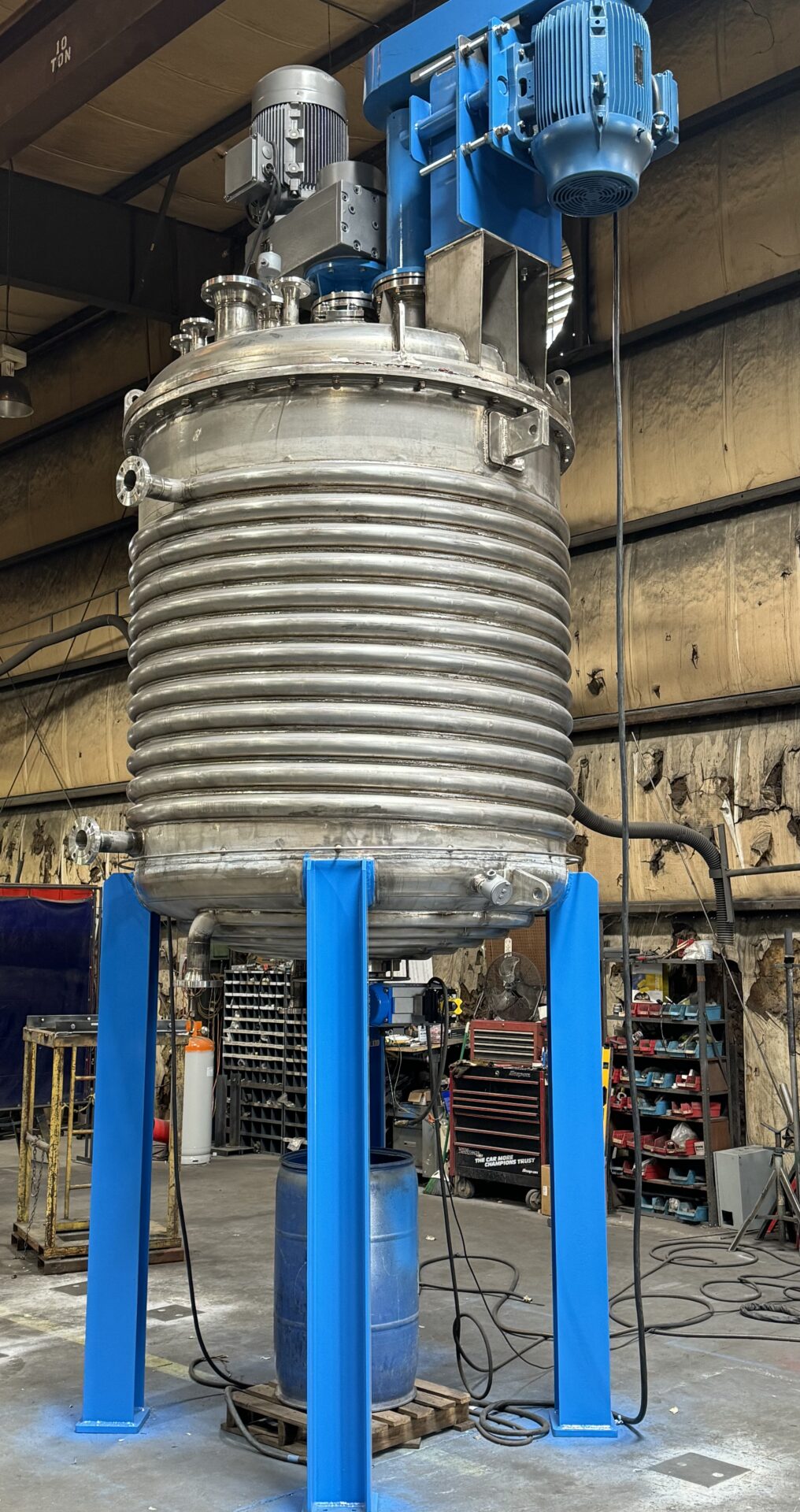

ASME Pressure Vessels & Tanks

U / U2 & NB “R” stamped builds

  • Mixing tanks, reactors, pressure vessels, and large tanks—new builds, modifications, repairs
  • Materials: carbon steel, stainless, specialty alloys; conventional/dimple/half-pipe jackets; internal coils
  • Designed & fabricated in Fort Mill, SC with complete code documentation
ASME pressure vessel example

Let’s Specify Your Mixer or Vessel

Share your product, target viscosity/range, batch size, heat-transfer needs, and any code requirements. We’ll design a Mixer system that meets your spec.

Request a Quote Call 704-704-6151
