Custom Industrial Blower Packages for Pressure, Vacuum & Pneumatic Conveying
Carolina Material Technologies and Hardy Pro-Air help plants engineer custom blower packages around the required airflow, pressure or vacuum, layout, controls, noise limits, service access, and operating environment. Support includes new pressure and vacuum systems, pneumatic conveying blower packages, direct-drive upgrades, rentals, repairs, and troubleshooting.
A complete package engineered around the actual duty
The blower is only one part of a reliable air system. Hardy Pro-Air packages the blower, drive, filtration, silencing, protection, instrumentation, controls, and support structure around the conditions the equipment will face in service.
Typical package components and engineering considerations
Blower selection is based on the system — not horsepower alone.
Two packages with the same motor horsepower can perform very differently when pressure, vacuum, inlet temperature, elevation, pipe routing, filtration, controls, and operating range change. The goal is to deliver the required air at the actual operating point without unnecessary heat, noise, energy use, or maintenance.

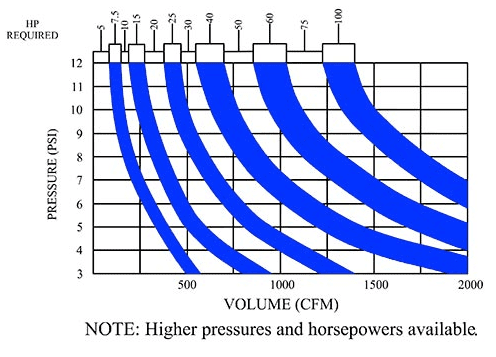

Standard pressure blower package configurations
The following range summarizes the standard pressure package schedule provided for preliminary selection. Hardy Pro-Air can review the exact operating point and determine the proper blower, motor, accessories, discharge connection, and enclosure.
| Discharge Pressure | Listed Motor Range | Listed Design Airflow | Listed Airflow Span | Listed Discharge Connections |
|---|---|---|---|---|
| 3 PSIG | 3 HP | 100 SCFM | 31–135 SCFM | 2 in. MNPT |
| 5 PSIG | 5–40 HP | 100–1,000 SCFM | 25–1,075 SCFM | 2 in. MNPT through 6 in. ANSI flange |
| 8 PSIG | 7.5–60 HP | 100–1,000 SCFM | 22–1,075 SCFM | 2 in. MNPT through 6 in. ANSI flange |
| 10 PSIG | 30–75 HP | 400–1,000 SCFM | 300–1,075 SCFM | 4 in. MNPT through 6 in. ANSI flange |
Preliminary selection only: Available flow at a given pressure depends on the selected blower, speed, inlet conditions, elevation, temperature, gas properties, duty cycle, and system resistance. Final equipment should be selected from the complete application data.
Industrial blower packages, upgrades, parts & support
A complete source for custom packages, standard pressure systems, vacuum systems, standalone blowers, direct-drive upgrades, sound control, rentals, replacement parts, and engineered support.
Custom Blower Packages
Application-specific packages for facilities with special layouts, harsh environments, sound limits, controls requirements, outdoor installations, or difficult operating conditions.
- Layout-driven package design
- Component selection and CAD support
- Designed around access, uptime, and maintainability

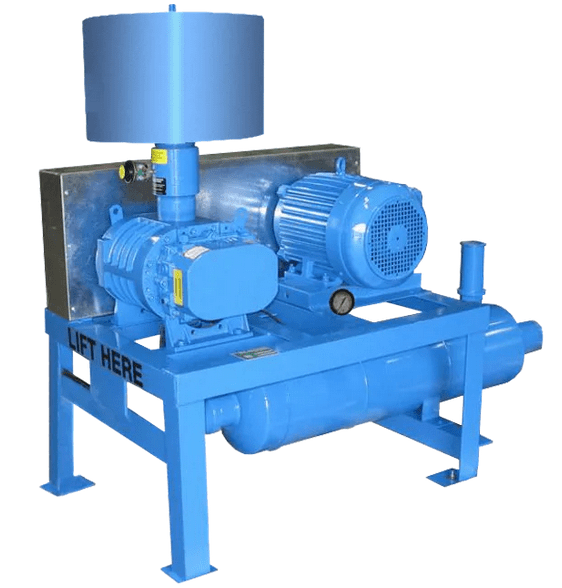

Pressure Blower Packages
Positive-pressure blower systems for pneumatic conveying, aeration, agitation, combustion air, process air, and other industrial duties.
- Application-specific airflow and pressure sizing
- Relief valves, gauges, silencers, filters, and controls
- Standard and custom configurations

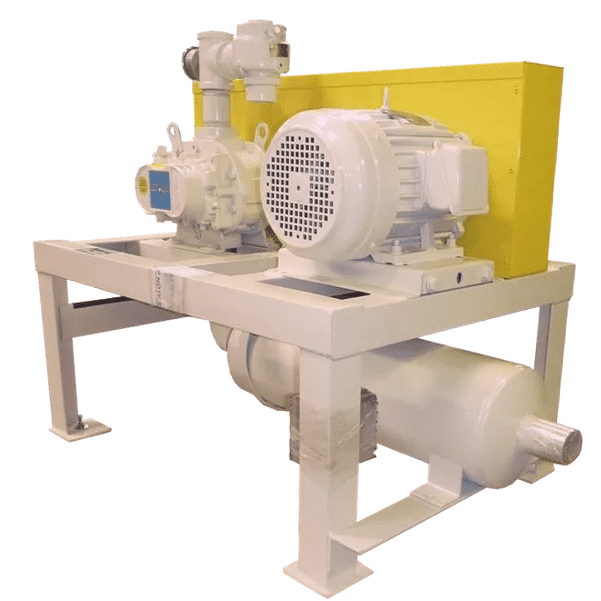

Vacuum Blower Packages
Negative-pressure blower packages for industrial vacuum, vacuum conveying, dust collection, material pickup, and process air movement.
- Vacuum level and air volume matched to the duty
- Inlet filtration and silencing options
- Designed for reliable continuous operation

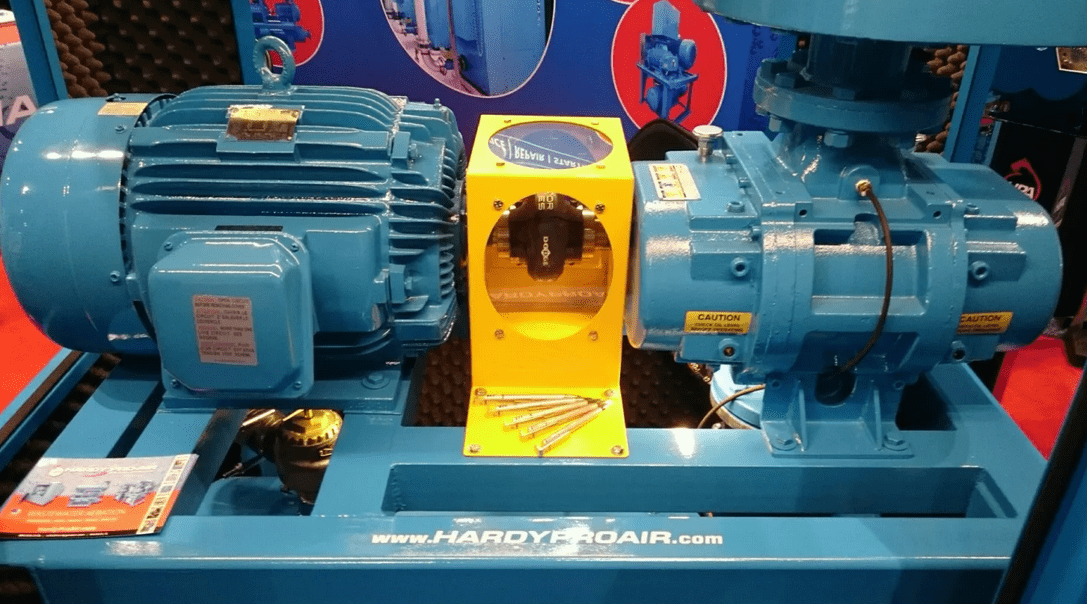

Direct-Drive Blower Systems
Direct-drive packages eliminate belts and reduce common maintenance points associated with belt-driven blower systems.
- No V-belt changes or tensioning
- Reduced side-load stress on shafts, bearings, and seals
- Well suited for VFD-controlled operating ranges

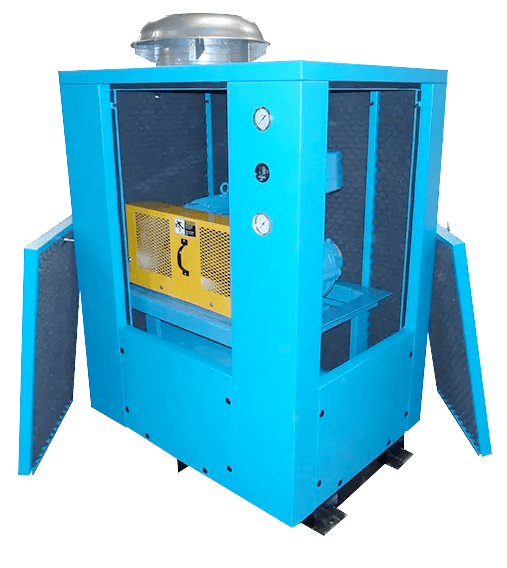

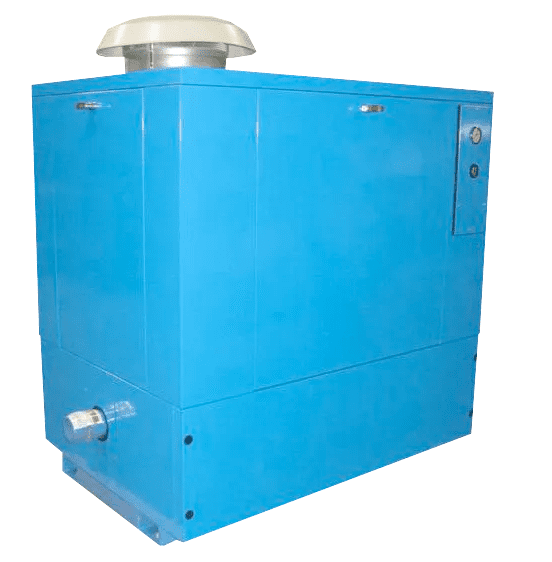

Sound Enclosures
Acoustic enclosures for new packages or retrofit installations where worker exposure, plant noise, or neighborhood sound levels matter.
- Drop-over and custom enclosure options
- Designed for airflow, service access, and heat management
- Indoor and outdoor configurations
Parts & Accessories
Replacement and upgrade components to keep blower systems operating efficiently and reduce unexpected downtime.
- Filters, belts, gauges, valves, connectors, and instrumentation
- Controls and VFD support
- Preventive-maintenance parts and package upgrades
How a blower package is selected and configured
A dependable package starts with the system duty and works outward to the blower, drive, accessories, controls, enclosure, and installation requirements.
Define the Duty
Confirm required airflow, pressure or vacuum, operating range, duty cycle, ambient conditions, and the process the air system must support.
Review the System
Evaluate piping route, elevation, temperature, filtration, material characteristics, electrical supply, noise limits, and available footprint.
Select & Package
Choose the blower and motor, then configure the drive, silencers, relief protection, valves, connectors, controls, base, guarding, and enclosure.
Support the Installation
Coordinate drawings, connections, service access, startup considerations, spare parts, maintenance needs, and future operating flexibility.
Blower brands, replacements & retrofit support
Hardy Pro-Air supports systems built around leading positive displacement blower manufacturers, helping plants match the correct blower to a new duty or replace aging equipment in an existing package.

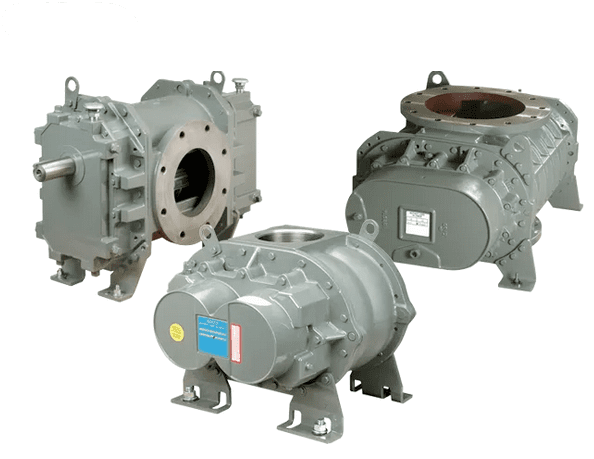

Roots Blowers
Replacement, package, and service support for Roots-style positive displacement blower applications.

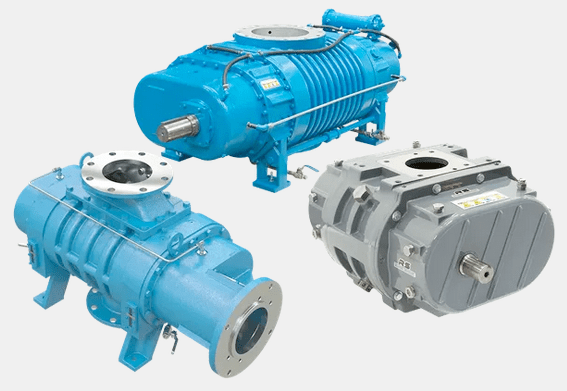

MD-Kinney Blowers
Blower selection and package support for pressure and vacuum systems requiring reliable air movement.

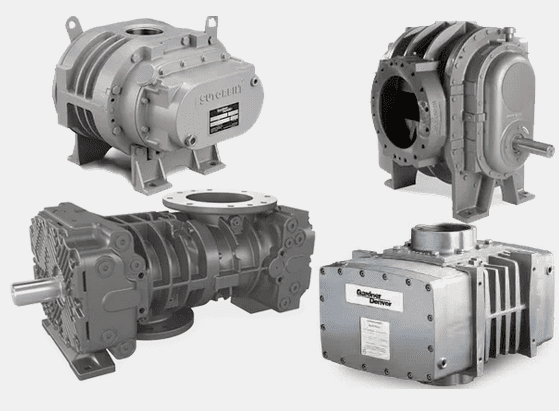

Gardner Denver Blowers
Support for new systems, replacement blowers, repairs, and existing blower-package upgrades.

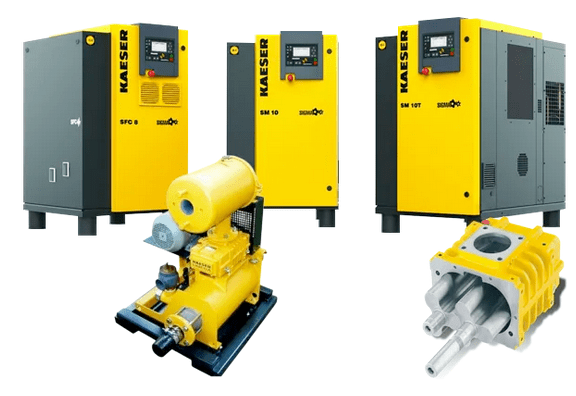

Kaeser Blowers
Blower equipment support for industrial, municipal, process-air, and aeration applications.
Retrofits & Upgrades
Upgrade aging packages with new blowers, improved controls, sound treatment, accessories, weather protection, or direct-drive configurations.

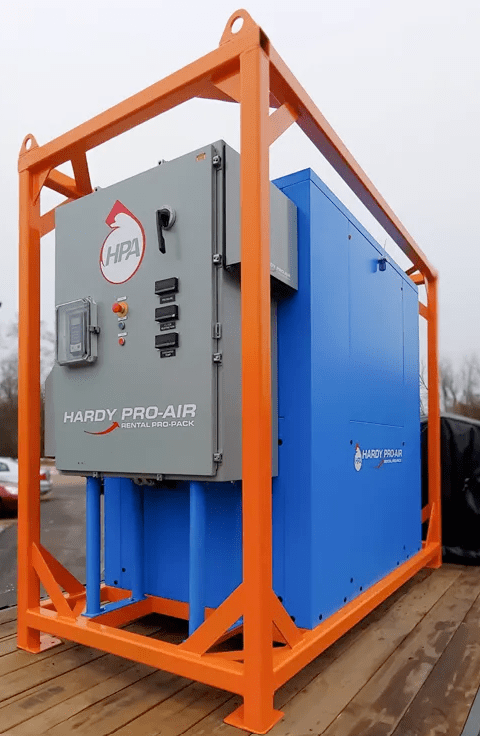

Rental Blower Packages
Short- or long-term rental packages for outages, trials, maintenance windows, temporary capacity, bypass needs, and emergency support.
Where properly engineered blower packages make the difference
The blower package is often the hidden reliability point behind conveying rate, vacuum pickup, aeration performance, dust collection effectiveness, product transfer, and plant uptime.
Pneumatic Conveying
Pressure and vacuum conveying of powders, pellets, granules, flakes, and other dry bulk solids. Package selection must account for conveying rate, line size, route, pickup pressure, and system losses.
Wastewater Aeration
Municipal and industrial aeration blower packages, direct-drive upgrades, temporary rentals, sound control, and replacement equipment.
Dust Collection & Filter Receivers
Air movement support for collection systems, filter receivers, process ventilation, central vacuum, and other negative-pressure duties.
Industrial Vacuum
Vacuum systems for pickup, cleanup, transfer, process suction, unloading, and material-handling duties.
Blower packages for new systems, replacements & upgrades
The exact arrangement changes by application, but these are common ways Hardy Pro-Air packages are used in industrial and municipal facilities.
Pneumatic Conveying Pressure Package
A positive displacement blower package supplies the conveying air required to move material through the line. It may interface with rotary airlocks, pressure vessels, diverter valves, receivers, and dust collection equipment.
- Sized from conveying rate, material properties, pipe route, and pressure loss
- Configured with filtration, silencing, pressure relief, gauges, and controls
- Available as a standard or custom-layout package
Vacuum Conveying or Central Vacuum Package
A vacuum package creates suction at one or more pickup points and pulls air or material toward a receiver or collection point.
- Inlet protection and filtration selected for the duty
- Vacuum level and air volume matched to pickup and line losses
- Controls coordinated with receivers, valves, and collection equipment
Aeration or Continuous Process-Air Package
Continuous-duty systems can be configured for aeration, agitation, process air, or other applications requiring steady airflow across an operating range.
- Direct-drive or belt-driven options
- VFD control where variable air demand is required
- Sound enclosure, weather protection, and redundancy considerations
Replacement or Retrofit Package
An existing package can be reviewed when the plant is experiencing excessive maintenance, heat, noise, poor capacity, obsolete controls, or repeated blower failures.
- Verify the real operating point before replacing equipment
- Consider new controls, accessories, drive configuration, and sound treatment
- Preserve usable infrastructure when practical
Repair, rebuild, consultation & engineering
The product line goes beyond new equipment. Hardy Pro-Air supports existing installations with repair services, field consultation, fabrication, controls, and engineering expertise.

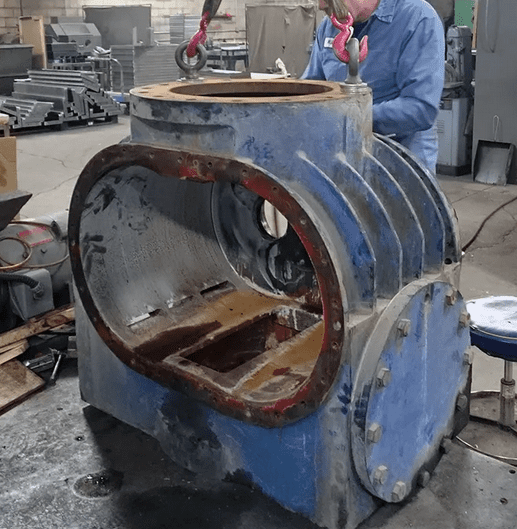

Blower Repair Services
Repair and rebuild support for failing or worn positive displacement blowers when a plant needs to restore performance without immediately replacing an entire system.
- Troubleshooting and inspection
- Repair or rebuild to extend equipment life
- Support for emergency downtime situations

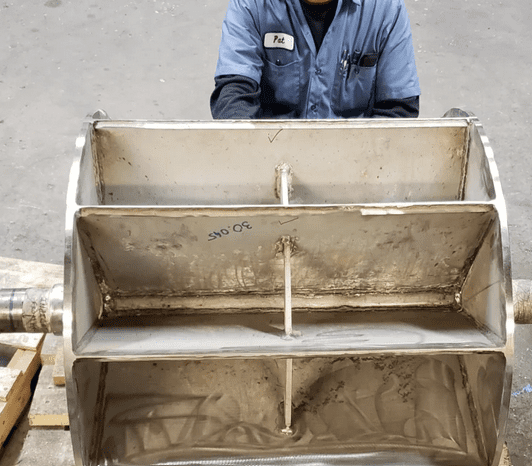

Rotary Airlock Repair
Repair support for rotary valves and airlocks used in pneumatic conveying, dust collection, filter receivers, silos, and material discharge points.
- Airlock evaluation and rebuild options
- Reduced leakage and improved feeding performance
- Support for conveying-system reliability and uptime

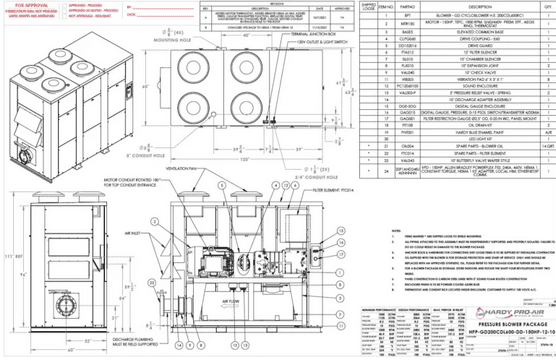

Engineering Support
Blower-package design, equipment selection, system review, VFD and control considerations, layout support, and application-specific recommendations.

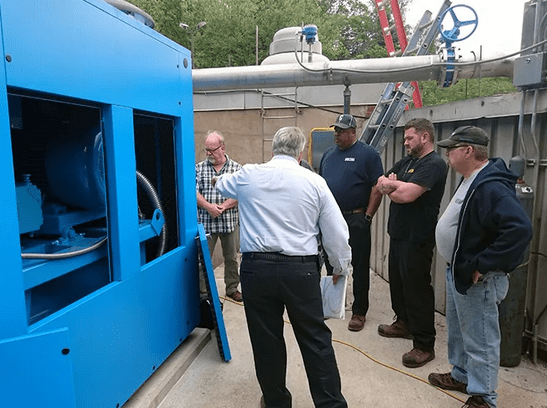

Consultation & Troubleshooting
In-field or in-house consultation for plants dealing with poor conveying rate, inadequate vacuum, excessive noise, high temperature, high maintenance, undersized equipment, or recurring failures.
Pressure vs. vacuum blower packages
Not every application needs the same blower arrangement. The right choice depends on where air enters the system, where material is picked up and discharged, operating pressure, maintenance goals, and the consequences of leakage.
| System Type | Best Fit | Common Uses | Key Design Questions |
|---|---|---|---|
| Pressure Blower Package | When air or material must be pushed from the blower side through the process. | Pneumatic conveying, aeration, agitation, combustion air, process air, and pressurization. | Required SCFM, discharge pressure, pipe route, conveying distance, elevation, temperature, operating range, and controls. |
| Vacuum Blower Package | When the system needs suction, pickup, vacuum conveying, or dust and vacuum collection. | Industrial vacuum, vacuum conveying, dust collection, pickup points, and process suction. | Required vacuum level, air volume, filter arrangement, inlet protection, material loading, pickup design, and discharge method. |
| Direct-Drive Package | When the plant wants fewer belt-related maintenance points and a compact drive arrangement. | Wastewater aeration, continuous-duty process air, and upgrades from belt-driven blowers. | Motor speed, VFD strategy, operating range, alignment, service access, process turndown, and energy profile. |
| Rental Blower Package | When temporary air capacity is needed without an immediate permanent-equipment purchase. | Outages, trials, emergency breakdowns, construction phases, bypass needs, and seasonal capacity. | Rental duration, required pressure or vacuum, electrical supply, controls, footprint, weather exposure, and connection requirements. |
Getting the operating point right matters.
A blower that is too small may not deliver the air needed at the required pressure or vacuum. A package that is unnecessarily oversized can increase energy use, heat, noise, bypassing, and equipment wear. Carolina Material Technologies can gather the field data and coordinate with Hardy Pro-Air to review the application.
Need Help Sizing an Industrial Blower?
Download the Industrial Blower Sizing Guide to review the airflow, pressure or vacuum, operating conditions, system resistance, piping, and application details that should be considered before selecting a blower package.
Local blower package support backed by Hardy Pro-Air engineering
Carolina Material Technologies represents Hardy Pro-Air across North and South Carolina. We can review the application, visit the plant when appropriate, help document the current system, coordinate equipment selection, and connect the blower package to the surrounding conveying, airlock, filtration, controls, and material-handling equipment.
Useful items for a blower review
- Current blower and motor nameplate photos
- Required or measured airflow, pressure, or vacuum
- Process description and operating schedule
- Piping sketch, line sizes, lengths, and elevations
- Material data and conveying rate, when applicable
- Electrical supply and controls requirements
- Noise, weather, footprint, and access constraints
- Photos or video of the existing installation
Connect the blower package to the complete process
Hardy Pro-Air blower systems often connect directly to the broader bulk material handling and air-handling equipment Carolina Material Technologies supports across the Carolinas.
Industrial blower package questions
What information is needed to size a blower package?
Typical sizing inputs include required airflow, discharge pressure or vacuum level, elevation, inlet temperature, piping layout, system losses, material being conveyed, desired conveying rate, duty cycle, electrical requirements, controls, sound limitations, weather exposure, and available footprint. Existing nameplate data and operating measurements are also helpful for replacement projects.
What standard pressure blower package range is shown on this page?
The submitted standard pressure package schedule includes configurations from 3 to 75 HP, design airflow options from 100 to 1,000 SCFM, listed airflow spans up to 1,075 SCFM, and pressure configurations of 3, 5, 8, and 10 PSIG. Final selection depends on the exact operating conditions and selected blower.
Can Hardy Pro-Air support both pressure and vacuum applications?
Yes. Hardy Pro-Air offers pressure blower packages, vacuum blower packages, standalone blowers, accessories, and custom packages for a wide range of air and material-handling applications.
Can a sound enclosure be included with the blower package?
Yes. Sound enclosures can be supplied for new packages or considered for retrofit applications. The design must maintain ventilation, control heat, provide service access, and account for indoor or outdoor installation requirements.
When should I consider direct-drive instead of belt drive?
Direct-drive is worth considering when the plant wants to eliminate belt changes and tensioning, reduce side-load stress, simplify the drive arrangement, or pair the package with VFD controls for process flexibility. The decision should still be based on the required speed and operating range.
Can an existing blower package be repaired, rebuilt, or upgraded?
Yes. Hardy Pro-Air offers blower repair and rotary airlock repair support, along with replacement blowers, controls, accessories, sound treatment, and direct-drive upgrade options. A system review can help determine whether repair, retrofit, or replacement is the most practical path.
Do you support blower packages in North Carolina and South Carolina?
Yes. Carolina Material Technologies represents Hardy Pro-Air in the Carolinas and can help with local application review, site visits, equipment selection, system integration, and coordination with Hardy Pro-Air engineering and service resources.
Need a custom blower package, replacement, direct-drive upgrade, rental, repair, or troubleshooting support?
Send us your application details, photos, drawings, blower nameplate, or current operating conditions. We will help identify the information needed for selection and coordinate with Hardy Pro-Air on a practical pressure or vacuum blower solution.
