Innova • Arm Stretch Wrapping
Arm Stretch Wrapping for Versatile, High-Efficiency Pallet Containment

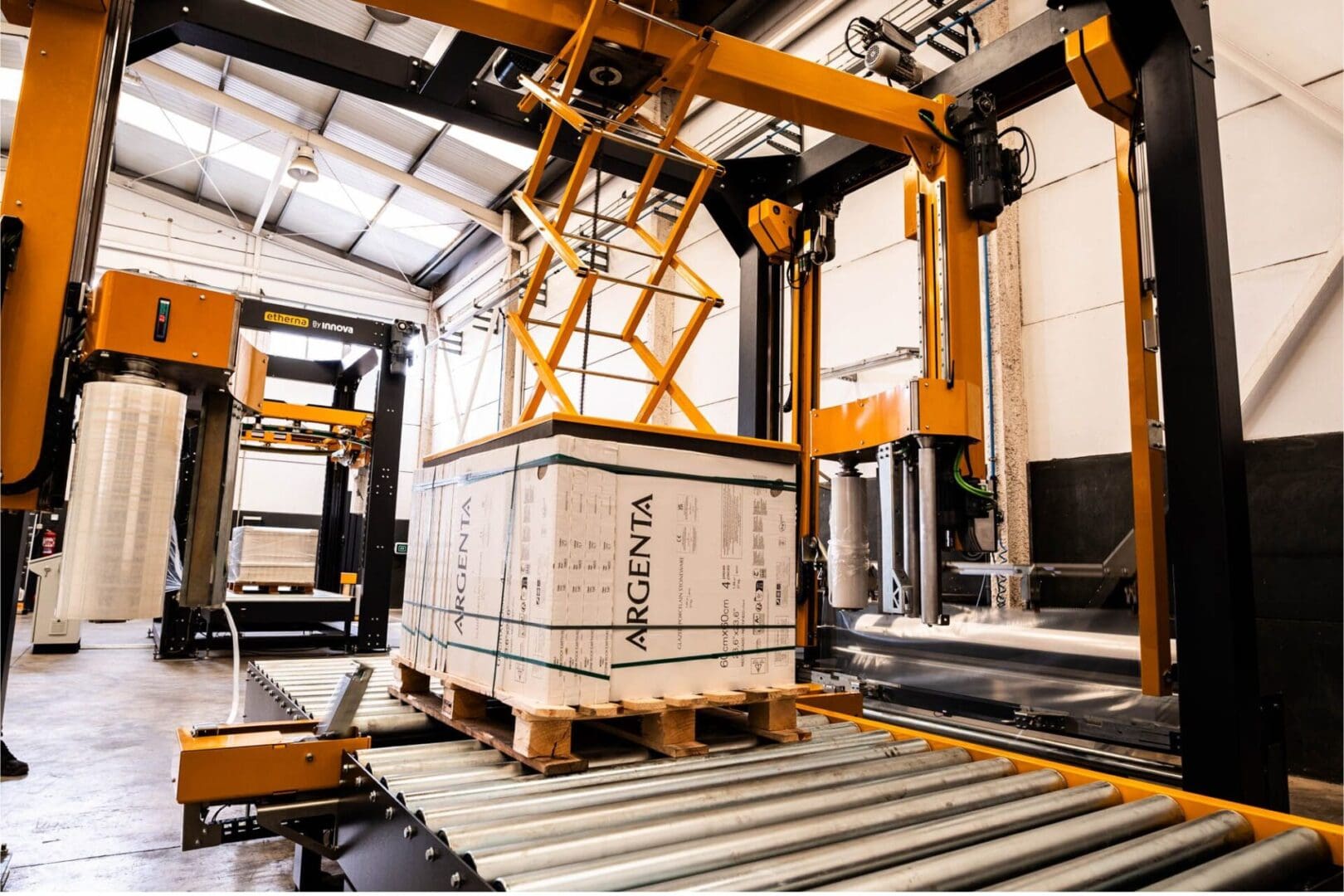

Arm stretch wrapping is a flexible automatic pallet wrapping solution designed to adapt to a wide range of load sizes and end-of-line layouts. It combines fast cycle times, low film consumption, and a wide accessory range to deliver stable, repeatable load containment for demanding production lines.
Best for: facilities that need versatile automatic wrapping, lower film use, high line efficiency, and the flexibility to handle varying pallet sizes and product formats.
Why Choose Arm Stretch Wrapping?
Innova positions its arm stretch wrapper as one of its most versatile wrapping systems, with cycle times as low as 32 seconds, film pre-stretch up to 400%, and models that can handle loads from about 500 mm to 2,400 mm and beyond depending on the application. :contentReference[oaicite:1]{index=1}
Fast, Efficient Wrapping Cycles

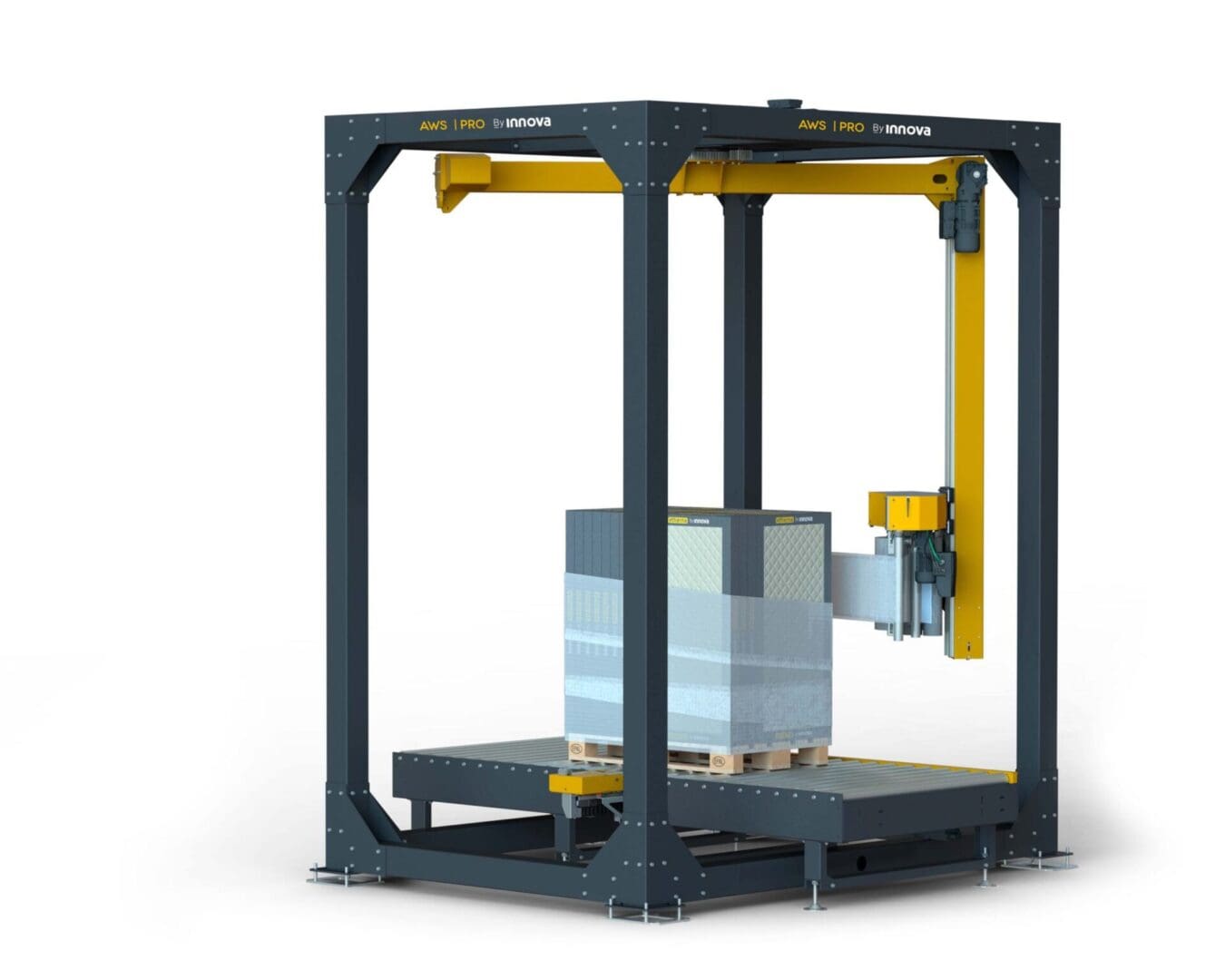

Arm wrapping is designed for high-speed end-of-line production, with Innova listing wrapping cycles as low as 32 seconds and complete cycles including conveying at 48 seconds. :contentReference[oaicite:2]{index=2}
- Helps remove end-of-line bottlenecks
- Supports fast, repeatable pallet wrapping
- Optional dual carriage available for higher speed needs
Reduced Film Consumption
Innova highlights torque-controlled electronic wrapping and film pre-stretch up to 400% to reduce stretch film consumption while still applying the amount needed for the pallet size and load type. :contentReference[oaicite:3]{index=3}
- Better cost control on film use
- More sustainable packaging operation
- Consistent wrap quality across shifts

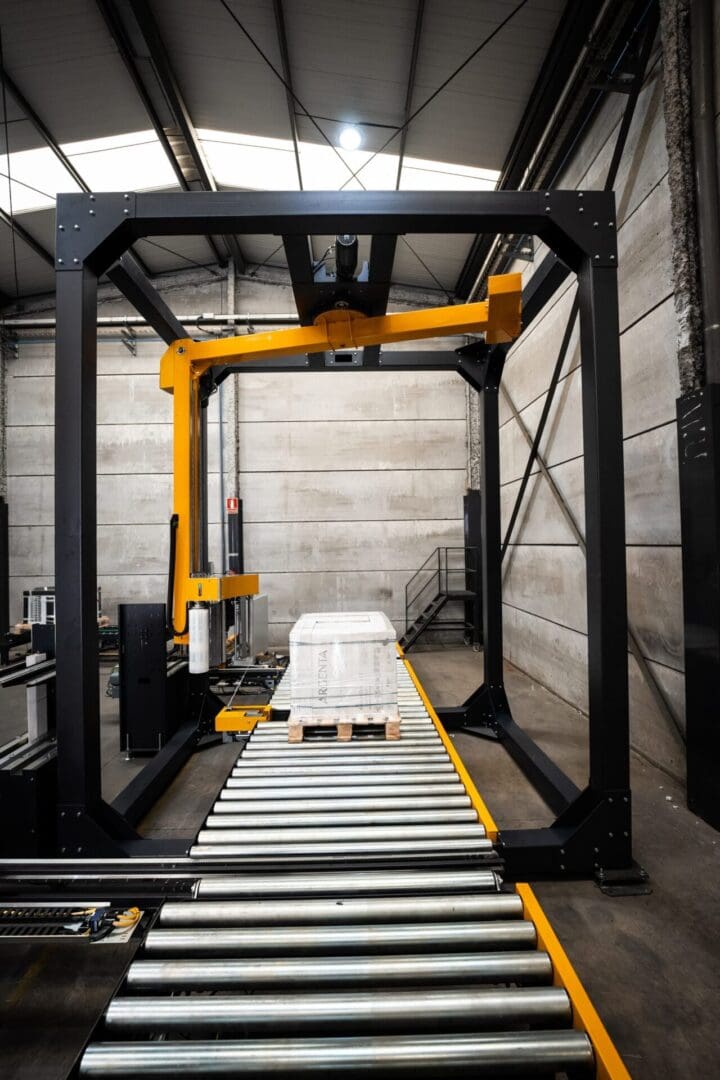

Versatility Across Load Sizes
With a modular structure and multiple model options, arm wrapping can be configured for a broad range of pallet sizes and heights, making it a strong fit for plants with multiple SKUs or changing packaging requirements. :contentReference[oaicite:4]{index=4}
- Adapts to different load footprints
- Suitable for tall or varied pallet heights
- Good fit for mixed production environments
How Arm Stretch Wrapping Works
In an arm wrapper, the pallet remains in position while the wrapping arm rotates around the load, applying film with controlled tension and pattern settings. This approach is useful when you need consistent containment without rotating the load itself.
Where Arm Stretch Wrapping Performs Best
Innova lists applications across food and beverages, chemicals, agri-food, cement, ceramics, paper, household appliances, and logistics, reflecting the system’s flexibility across industries and pallet types. :contentReference[oaicite:5]{index=5}

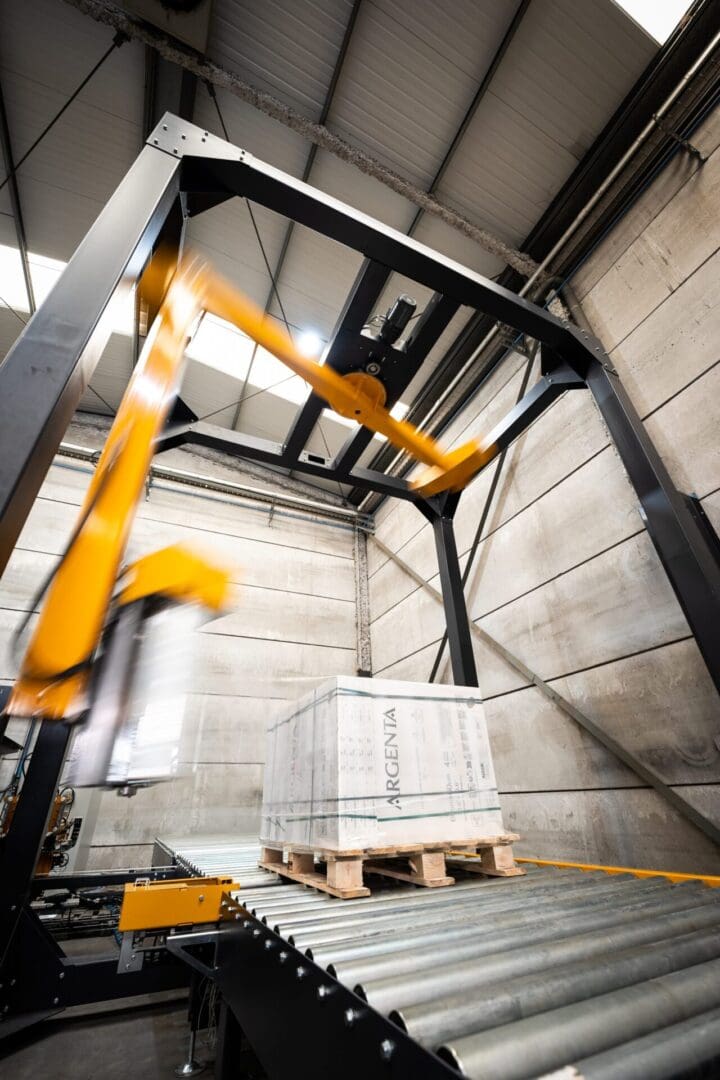

Industrial Manufacturing Lines
Arm wrapping is a strong fit for manufacturers that need automatic wrapping across different product types, pallet sizes, and production schedules.
- Chemicals, food, ceramics, paper, and more
- Supports higher throughput packaging lines
- Improves consistency from shift to shift
Mixed Loads & Logistics
When facilities handle variable pallet heights, changing products, or mixed-load shipping, arm stretch wrapping provides flexible containment with repeatable automation.
- Useful for changing pallet formats
- Supports standardized final load quality
- Helps improve transport stability
Options, Accessories, and Integration

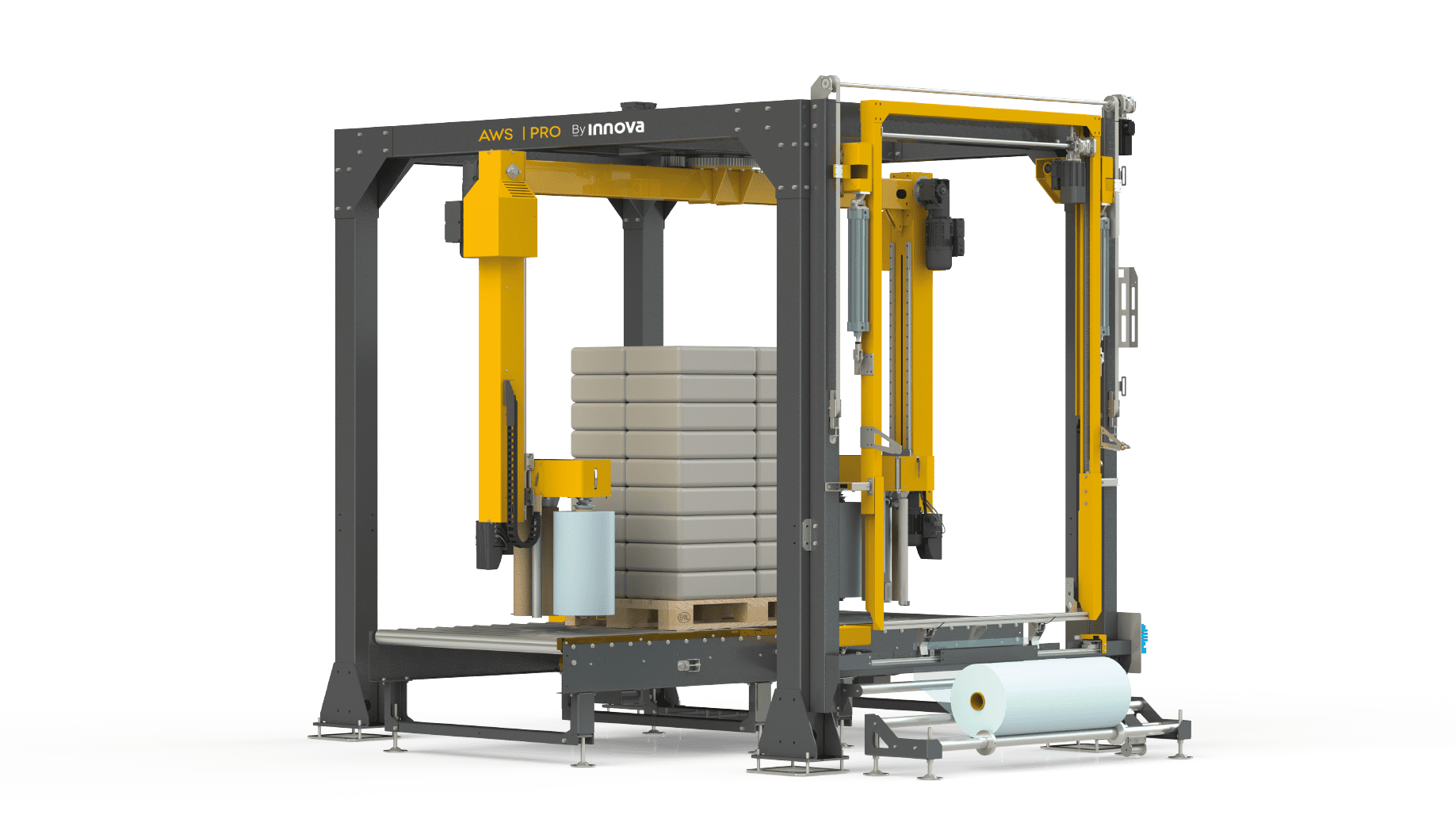

Innova highlights a wide accessory range for its arm wrapper, including top cover application, top press, lower support for low-weight pallets, and vertical edge protector application. The datasheet also lists production up to 80 pallets per hour, one or two reels, maximum standard load size around 1,300 x 1,250 mm, max height around 2,400 mm, and max weight around 2,000 kg, with adaptability available for other requirements. :contentReference[oaicite:6]{index=6}
Load Protection Accessories
Add-ons can improve final load protection and presentation when products are exposed to dust, moisture, or transport risks.
- Automatic top cover applicator
- Vertical edge protector applicator
- Designed to improve finished load quality
Securing Unstable Loads
Optional securing accessories help stabilize lighter or less stable pallets during the wrapping cycle.
- Top press for light or unstable loads
- Lower support for low-weight pallets
- More control over difficult pallet profiles
Line Integration
We can help integrate an arm stretch wrapper with conveyors, accumulation, pallet handling, and the rest of your end-of-line packaging flow.
- New lines or retrofit projects
- Improved uptime and pallet flow
- Matched to your footprint and throughput goals
Arm Stretch Wrapping FAQs
What makes arm stretch wrapping different from ring wrapping?
Arm wrapping is often chosen for its versatility and its ability to handle a wide range of load sizes and accessories, while ring wrapping is often favored for very high-speed wrapping applications. Your best fit depends on pallet profile, throughput, and containment needs.
How much film can an arm wrapper save?
Innova highlights film pre-stretch up to 400% and torque-controlled wrapping to reduce film consumption, though actual savings depend on the pallet type, film selected, and containment target. :contentReference[oaicite:7]{index=7}
Can an arm wrapper handle unstable or lightweight pallets?
Yes. Optional accessories such as a top press and lower support are specifically aimed at helping secure lighter or unstable loads during wrapping. :contentReference[oaicite:8]{index=8}
What information do you need to quote an arm stretch wrapper?
Pallet dimensions, maximum height, load weight, product type, pallets per hour, desired accessories, and a simple layout or photos of your end-of-line area are the best place to start.
