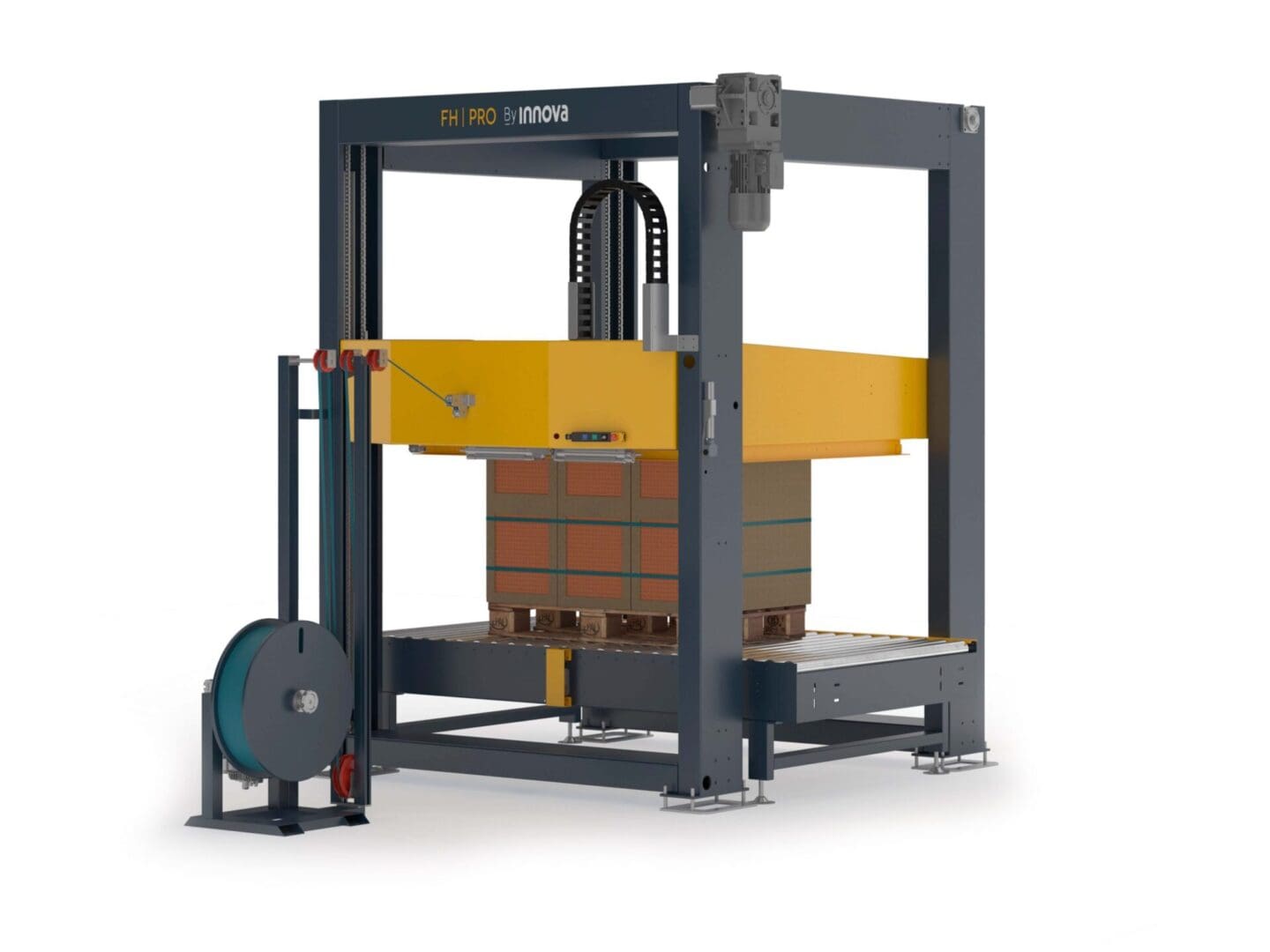

Innova • Horizontal Pallet Strapping
Horizontal Strapping for Compacting, Securing, and Stabilizing Boxed Pallet Loads
Horizontal strapping is designed to secure and compact palletized loads for safer transport and better final load quality. It is especially valuable on boxed product lines where lateral load stability, controlled compression, and secure pallet transport are critical.
Best for: boxed pallet loads, products that need lateral stability, plants shipping long distances, and operations where pallet compaction improves transport safety and load quality.
Why Choose Horizontal Strapping?
Horizontal strapping is often the right solution when the goal is to compact the pallet, secure boxes laterally, and improve overall transport stability. It is especially effective in end-of-line packaging systems for boxed products where wrapping alone may not provide the same lateral holding force.
Robust and Safe Strapping
The 4-pillar anti-vibration frame is designed to improve machine stability and deliver safer, more secure automatic pallet strapping.
- Built for dependable industrial packaging lines
- Improves consistency during automatic strapping
- Engineered for stable, secure load fastening
Load Compaction Before Strapping
An automatic lateral compactor pre-centers and compacts the load before strapping, helping improve transport stability and final pallet appearance.
- Reduces shifting before straps are applied
- Creates a tighter, more unified pallet load
- Improves consistency for boxed products
Better Lateral Load Holding
Four-sided horizontal strapping allows straps to be applied at different heights, improving lateral holding power across the load.
- Great for boxed and stacked case loads
- Helps prevent side-to-side movement in transit
- Supports safer pallet transportation
How Horizontal Strapping Works
In a horizontal strapping system, the pallet is positioned so the machine can compact the load and then apply straps horizontally around the pallet at selected heights. This creates strong lateral holding force and helps unify the load for storage and transport.
Where Horizontal Strapping Performs Best
Horizontal strapping is especially effective on boxed product lines and in industries where pallet loads need added lateral support, compaction, and transport security.
Boxed Products & Cases
Horizontal strapping is a strong fit for boxed pallets because it adds lateral holding force and helps keep cases tightly unified.
- Ideal for cartons and stacked case loads
- Useful where loads may shift side to side
- Improves shipping stability and pallet quality
Industrial Packaging Lines
Innova highlights use across chemicals, cement, agrifood, ceramics, home appliances, food and beverages, and paper applications.
- Supports demanding industrial environments
- Useful for heavy, boxed, or high-value loads
- Improves secure transport performance over distance
Options, Accessories, and Integration
Innova’s horizontal strapping platform includes its ODEN strapping head, optional vertical edge protector application, and compatibility with PET or PP strap. The FH|PRO reference configuration lists capacity up to 60 pallets per hour, standard max load size of 1,350 x 1,220 mm, large format up to 2,200 x 1,500 mm, max load height of 2,000 mm, and max load weight of 2,000 kg. :contentReference[oaicite:1]{index=1}
ODEN Strapping Head
Innova’s in-house ODEN strapping head is designed for higher performance and precision with fewer components and lower maintenance requirements.
- Resistance welded strap joining
- Designed for reliable industrial performance
- Lower-maintenance head design
Vertical Edge Protector Applicator
One of the most popular accessories is the automatic vertical edge protector applicator, which helps protect boxes from strap damage and adds extra load compaction.
- Helps reduce box crushing from strapping
- Adds load unification and protection
- Useful for heavier or more delicate cartons
End-of-Line Integration
We can help integrate horizontal strapping with conveyors, accumulation, transfers, and the rest of your packaging line for smooth pallet flow and reliable automation.
- Retrofit or new-line integration
- Matched to your footprint and pallet throughput
- Supports safer, cleaner end-of-line handling
Horizontal Strapping FAQs
When is horizontal strapping better than wrapping?
Horizontal strapping is often the better choice when boxed loads need stronger lateral compression and holding force, especially for transport conditions where side-to-side movement is a concern.
What types of strap can the system use?
Innova lists compatibility with polyester (PET) and polypropylene (PP) strapping materials in its FH|PRO technical reference.
How large a pallet can the machine handle?
The FH|PRO reference configuration lists standard maximum load dimensions of 1,350 x 1,220 mm and large formats up to 2,200 x 1,500 mm, with adaptability available for other loads.
What information do you need to quote a horizontal strapping system?
Pallet dimensions, load height, load weight, product type, required pallets per hour, strap preference, and a simple end-of-line layout or photos are the best place to start.
